ACE-S Electric Bike
$2,990.00$0.00
NOTICE
If a product sold please call the store to check when it will be back in stock as we have shipments arriving very few weeks. - Zippay and Afterpay are not offered on motorcycle, it is only offered on E-Bikes and E-Scooters.
*Each state and territory in Australia has a different set of rules and regulations pertaining to the usage of e-Scooters / E-Bikes or E-Motos (including where these types of products can legally be used and whether they need to be registered with the relevant road traffic authority). It is the responsibility of the user to ensure that they check and abide by their local laws and use responsibly.
Eazybikes Australia do not take any responsibility for the use of eScooters/E-Bike or E-motos in Australia. Have fun but ride with caution and always wear a helmet.

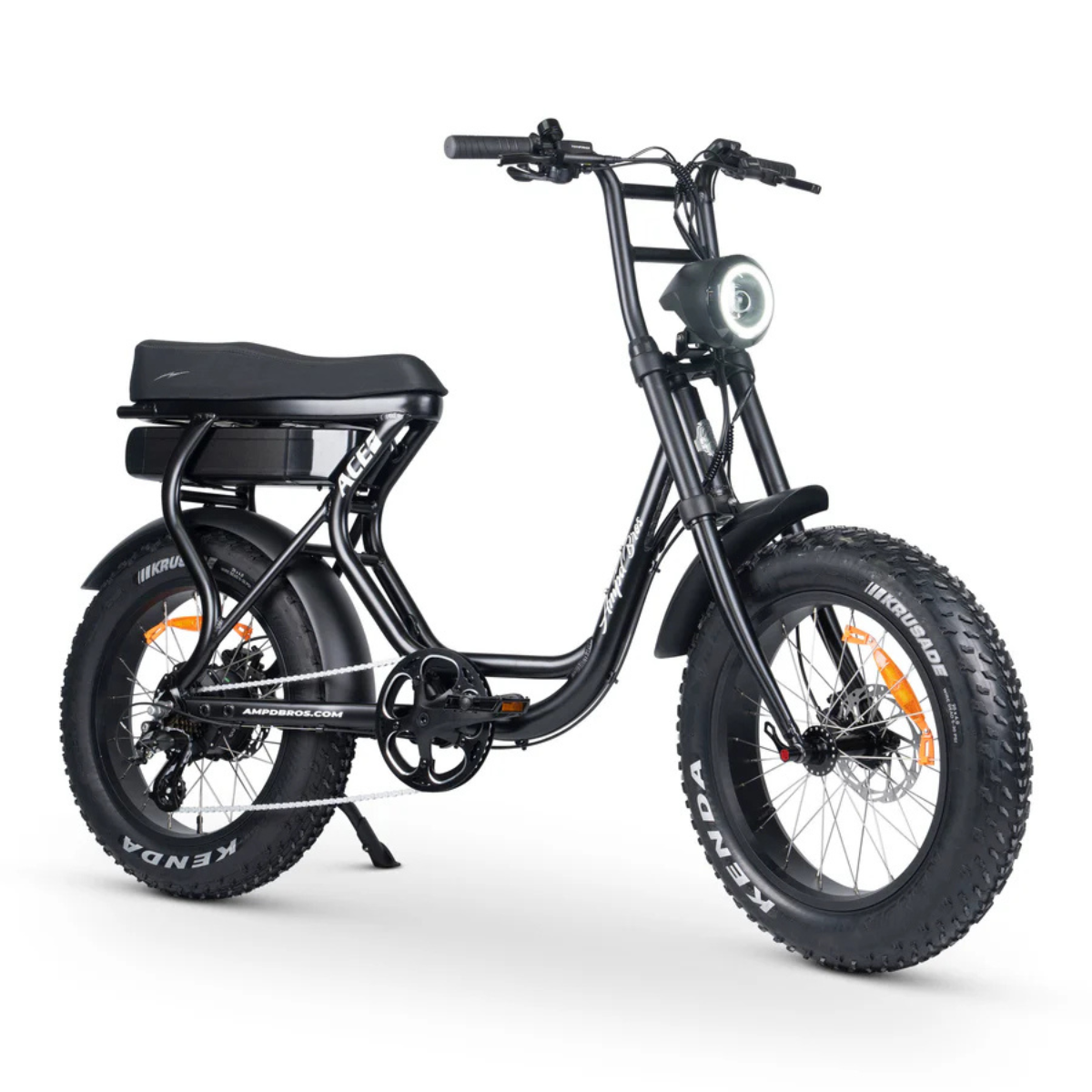

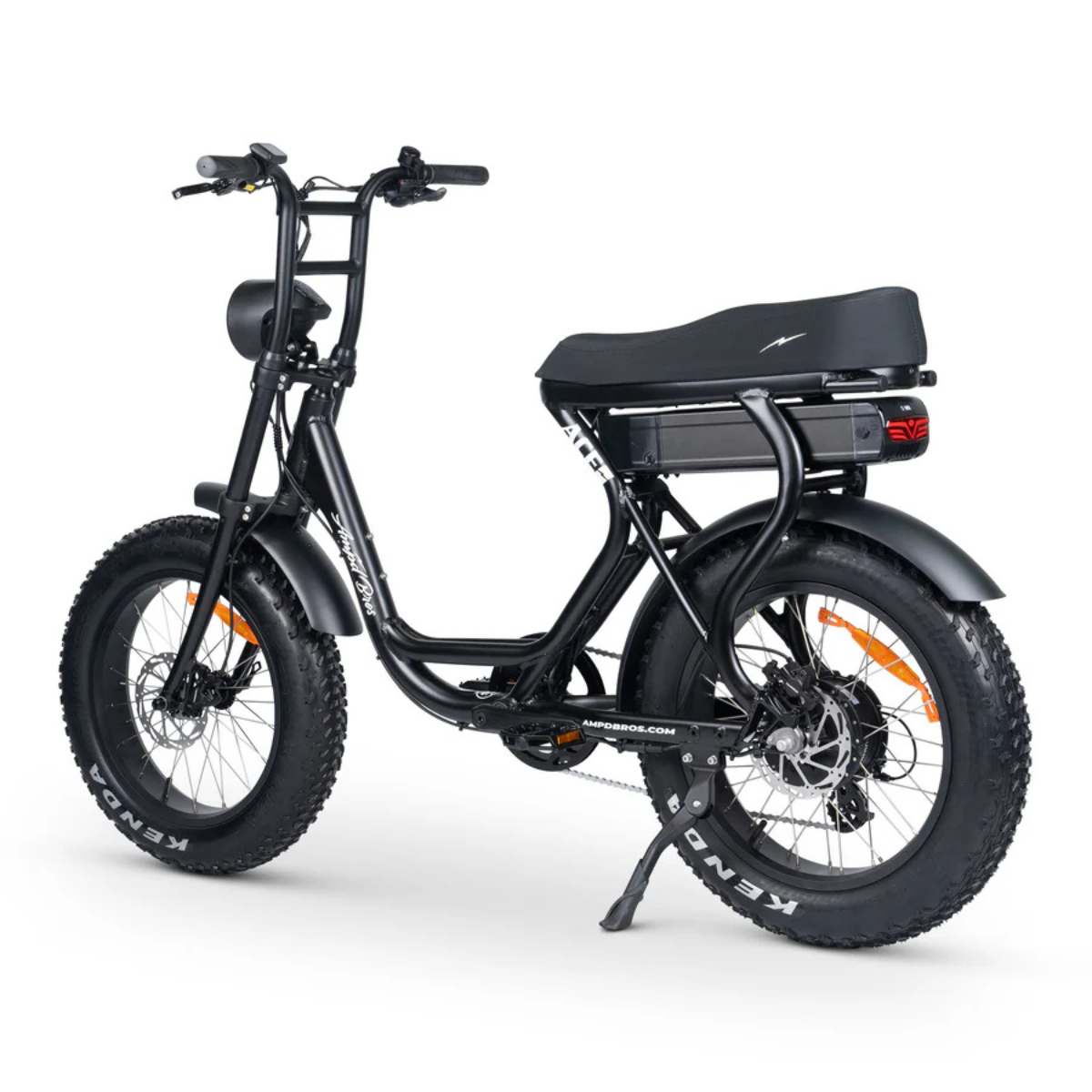

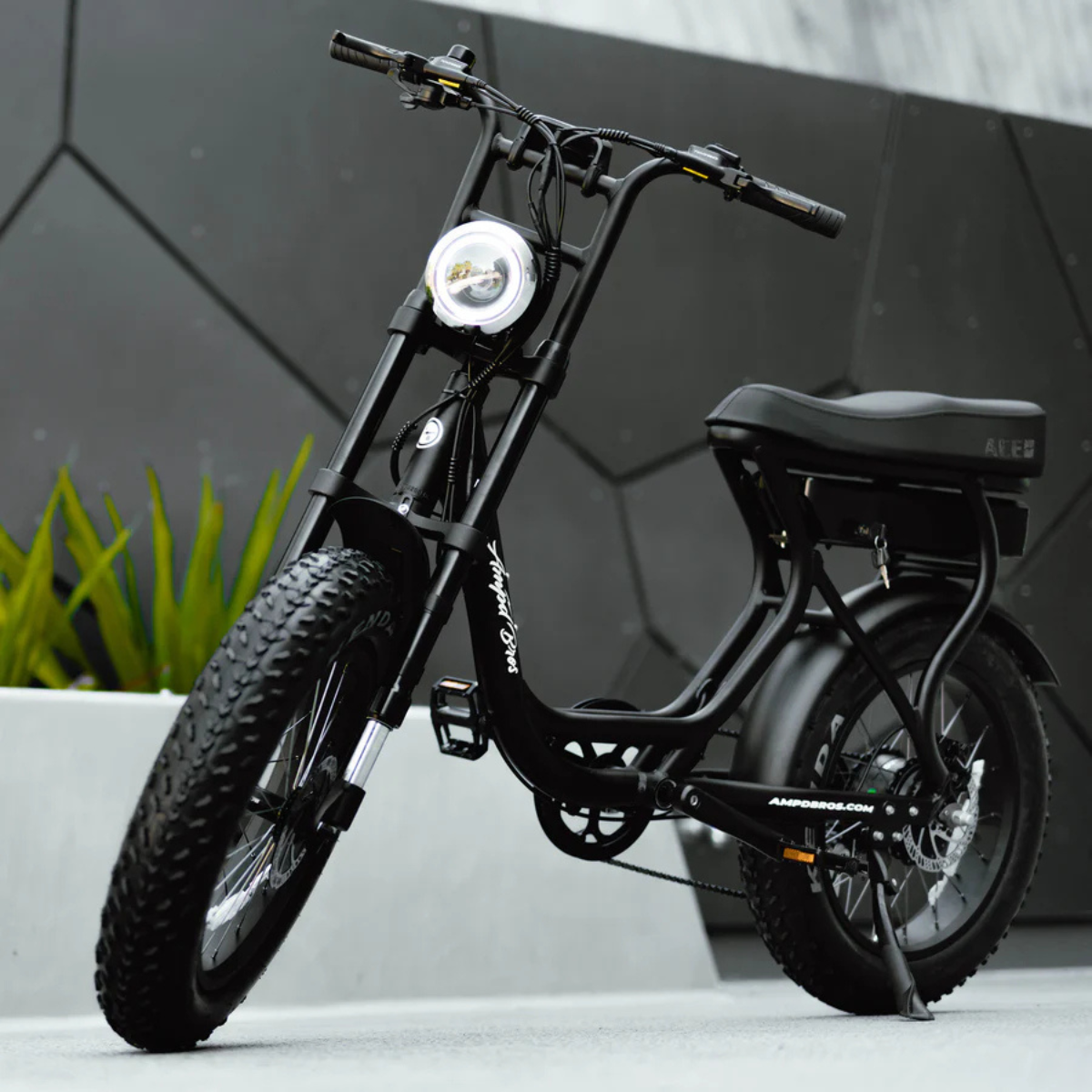

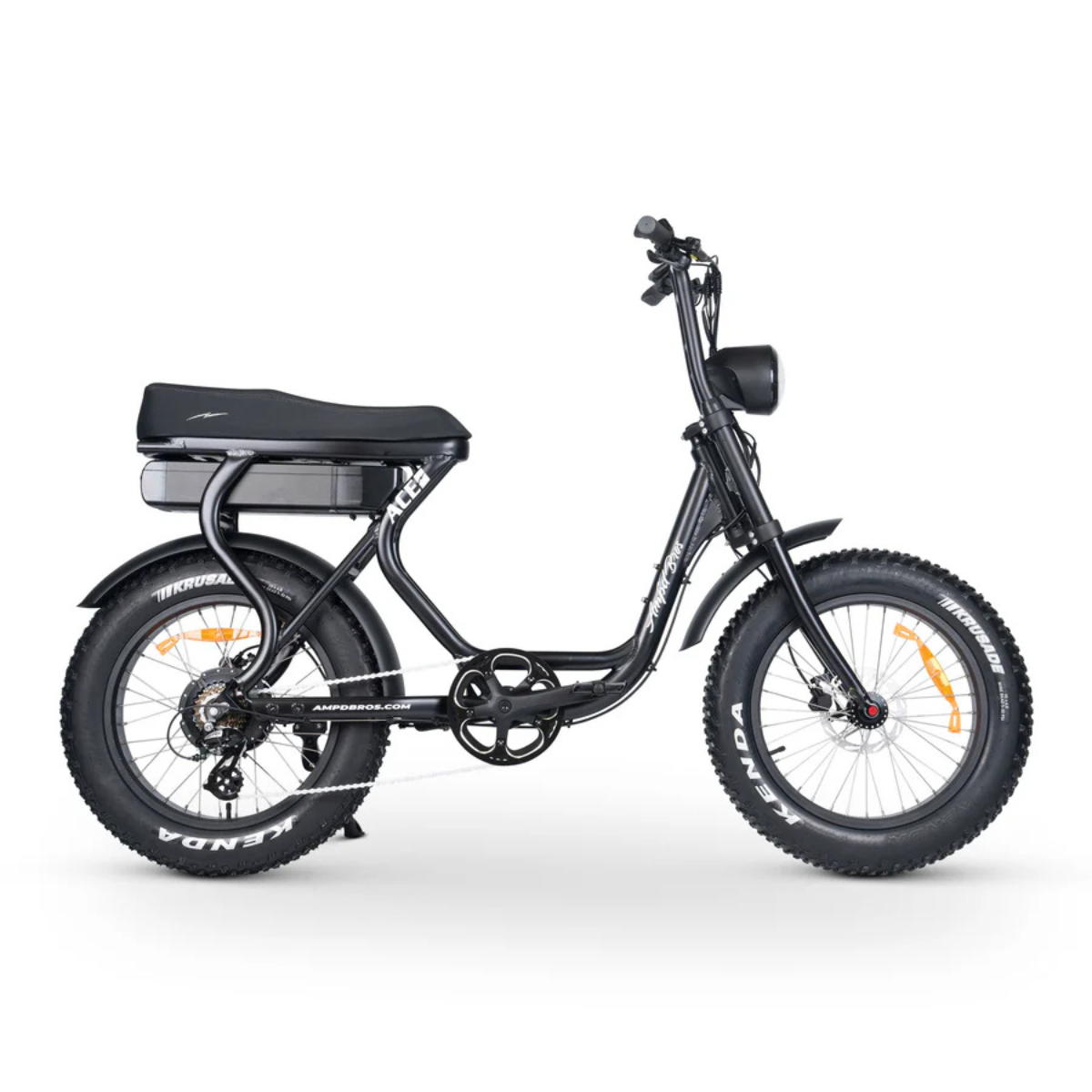

Introducing the ACE-S Electric Fat Tyre Bike – Elevate Your Adventure!
Revamped and refined, the ACE-S Electric Bike redefines your riding experience with its sleek Low Bar Step Through frame design, ensuring easy access and unparalleled comfort. Originating from our popular ACE-X model, the ACE-S maintains the robust construction that sets it apart.
Designed in conjunction with our in-house family team and continuously sought after since its debut in 2019, the ACE Bike continues to create waves nationwide.
Loaded with premium features and celebrated year after year as Australia's favourite fat tyre bike the ACE range boasts a Shimano 7 Speed Derailleur, vibrant colour options and a cutting-edge battery system with our Latest GEN3 Aluminium Battery which encompasses 21700 cells that are 30% larger than our competitors, paired with a Smart BMS for optimal performance and safety.
The ACE-S takes performance up a notch with our Custom Master Control unit, providing top-tier power density and advanced motor control algorithms. Seamlessly integrating light controls, improving reliability and simplifying diagnostics. The ACE is your go-to for all terrain adventure thanks to its 20x4" Fat Kenda krusade mud tyres, a High Torque Bafang Rear Hub Motor and Tektro Hydraulic Disc Brakes, guaranteeing a smooth and secure ride.
What's New for Series 4 ACE?
- New 52V 15AH Battery
- New Micro Intelligent Colour Display

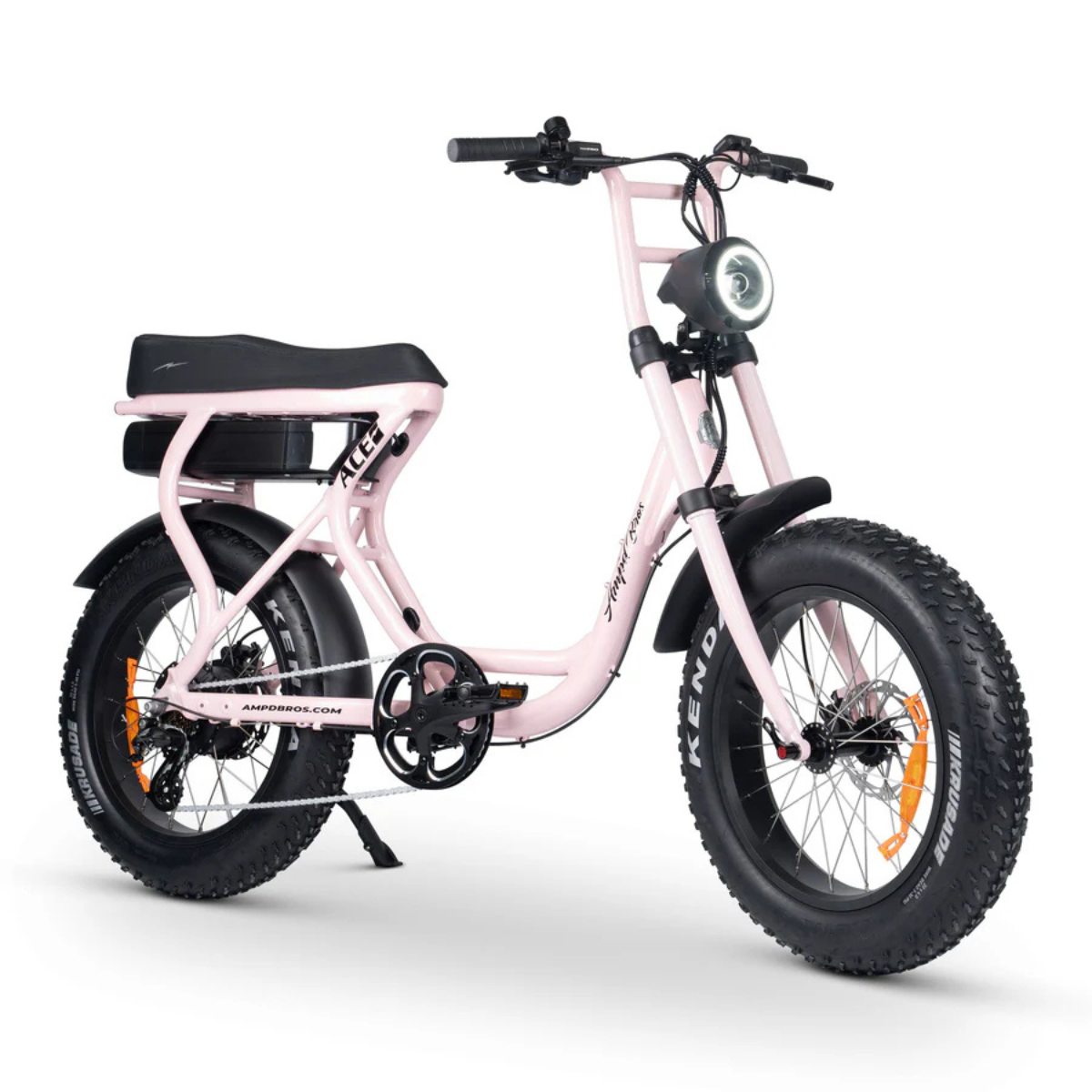

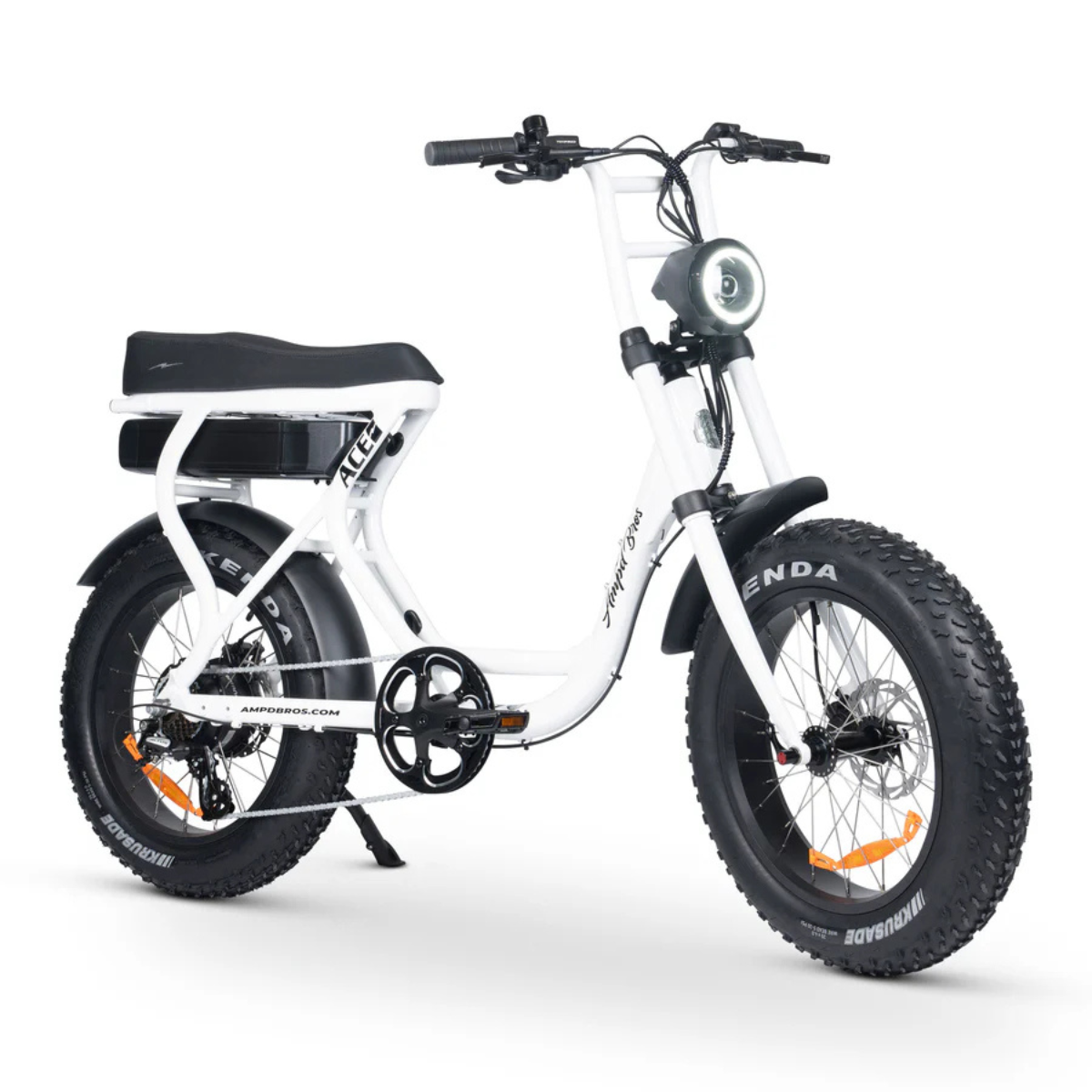

- New Colours for 2026
The ACE-S ensures no adventure is off-limits, accommodating two riders with its spacious seat. The removable Samsung Battery delivers an incredible 60km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE-S handles it all effortlessly. Opt for the Off-Road Throttle Kit for cruising ease, and embrace rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.
Constructed from lightweight aluminium and stainless steel spokes, the ACE-S promises durability with an effortless riding experience.
Join the ACE revolution and unlock limitless possibilities with the ACE-S Electric Fat Tyre Bike – your ticket to exhilarating adventures awaits!
SPECIFICATIONS
ACE SERIES 4
Range
- Ace Mini Models 40km+
- Ace Standard Models 60km+
- Ace Plus/Cargo Models 80km+
Battery
- Ace Mini 52V / 480Wh, 10AH (2026 Models+)
- Standard 52V / 780Wh, 15AH
- Plus/Cargo 52V / 1,040Wh, 20AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Motor Drive
- All Models Bafang Rear Hub High Torque Motor
- Ace Mini & Standard 65N.m
- Ace Plus+ & Cargo 80N.m
- EN Models Continuous Output 250W & 25km/h
- Off Road Models Ace Mini & Standard 500W
-
Off Road Models ACE Plus/Cargo 750W
Controller
- Ampd Bro's Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS
- Seat Custom Large Black Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort
- Bell Yes
Brakes
- Ace Mini Ampd Bros Hydraulic with 160mm Disc
- Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Drivetrain
- Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
- All Other Models Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance & Rust Resistant
Construction
- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Mini & Standard Models No Suspension
- Plus+ Models Front Custom Tuned Adjustable Fork
- Cargo Models Front Independent Suspension Fork (Non Adjustable)
Wheels & Tyres
- Ace Mini 16x.40" Innova Mud Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres
Charging
- 5-6hrs 10Ah Batteries with Standard 2A Charger
- 7-8hrs 15Ah Batteries with Standard 2A Charger
- 9-10hrs 20Ah Batteries with Standard 3A Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Ace Mini Dimensions
- Overall Length 1,470 mm
- ACE MAX Overall Length 1,950 mm
- Handlebar Height 1040 mm
- Handlebar Width 660 mm
- Seat Height 770 mm Fixed Height
- Seat Length 370 mm
- Ground Clearance 190 mm
- Wheel Base 990 mm
- Rider Height Ideal for Riders up to 170cm Tall
Weights
- N.W of 10Ah Battery 3.2kg
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus+ Battery 36 kg
- N.W of ACE Mini + Battery 29 kg
- N.W of ACE Cargo + Battery 40.5 kg
- Max Loading 180 kg
- ACE Mini Max Loading 100 kg
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
